Getting Started#

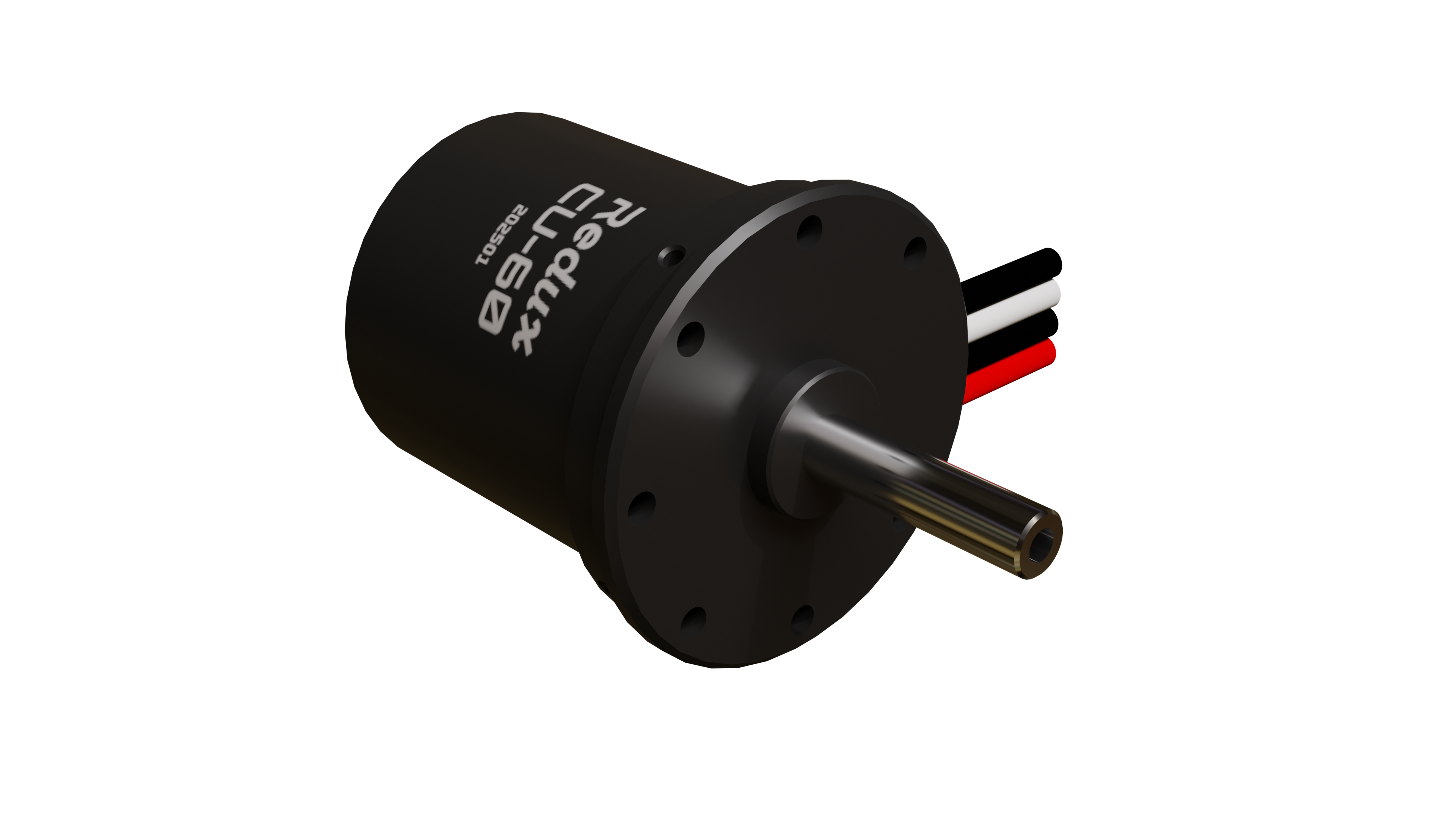

The Cu60 is a high power brushless motor developed for the FIRST Robotics Competition. Optimized for applications such as drivetrains and primary scoring mechanisms, the Cu60 offers high continuous current ratings unmatched by the competition.

The Cu60 is legal for the 2026 FRC Season.

../_images/cu60.png

Overview#

  • Reinforced+latching 24 AWG sensor cable

  • Firmware thermal model on Nitrate

  • 1.3 kW theoretical peak power in high gear (est.)

  • 6780 RPM free speed (est.)

  • 7.3 N*m theoretical stall torque (est.)

  • 88% estimated peak efficiency at 28A stator current (est.)

  • 60 A+ continuous stator current (est.)

  • 120 A 5-second peak stator current (est.)

  • Standard 10-32 2” mounting hole pattern with additional edge holes

  • Standard 8mm shaft with 2mm keyway to drop into existing systems

Setting up#

Coming soon!
