Specifications#
General Specifications#
Parameter |
Min |
Typ. |
Max |
Units |
|---|---|---|---|---|
Input Voltage |
6.0 |
– |
20 |
V |
Input Surge (5s) |
– |
– |
24 |
V |
No-load current @ 12V |
– |
30 |
– |
mA |
Ambient Temperature |
-5 |
– |
65 |
°C |
Continuous Current @ 12V |
– |
60 |
– |
A |
Peak Current @ 12V (5s) |
– |
– |
120 |
A |
Weight (with wires) |
– |
0.3 |
– |
lb |

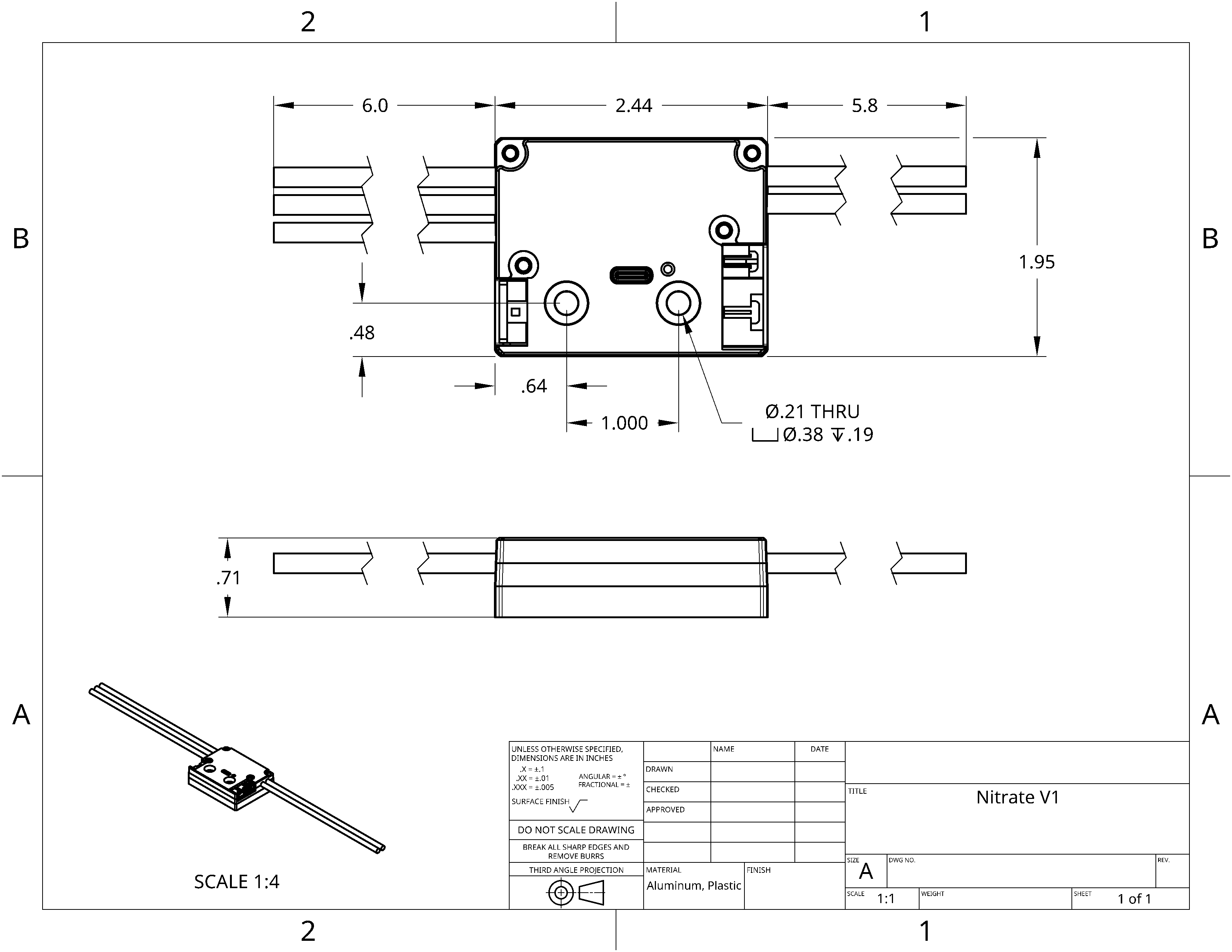

Mechanical Drawing#
